PEPEFOTO · 现场互动装置PEPEFOTO · LIVE EVENT INSTALLATION

哇！这个机器人
在画我。 Whoa! This robot
is drawing me.

Name: PepeSketch AI 素描机械臂 / AI Sketch Robotic Arm
Brand: PepeFoto
Availability: InStock

拍照或上传，AI 生成线稿，机械臂当场画出一张可以带走的画像。硬件负责落笔，软件负责让每一张图顺利完成。 Snap or upload a photo — AI makes the line art, and the arm draws a portrait to take home. The hardware draws; the software keeps every job moving.

看 30 秒完整体验Watch the 30-sec experience 获取配置建议Plan my setup

≈ 175 mm

≈ 315 mm

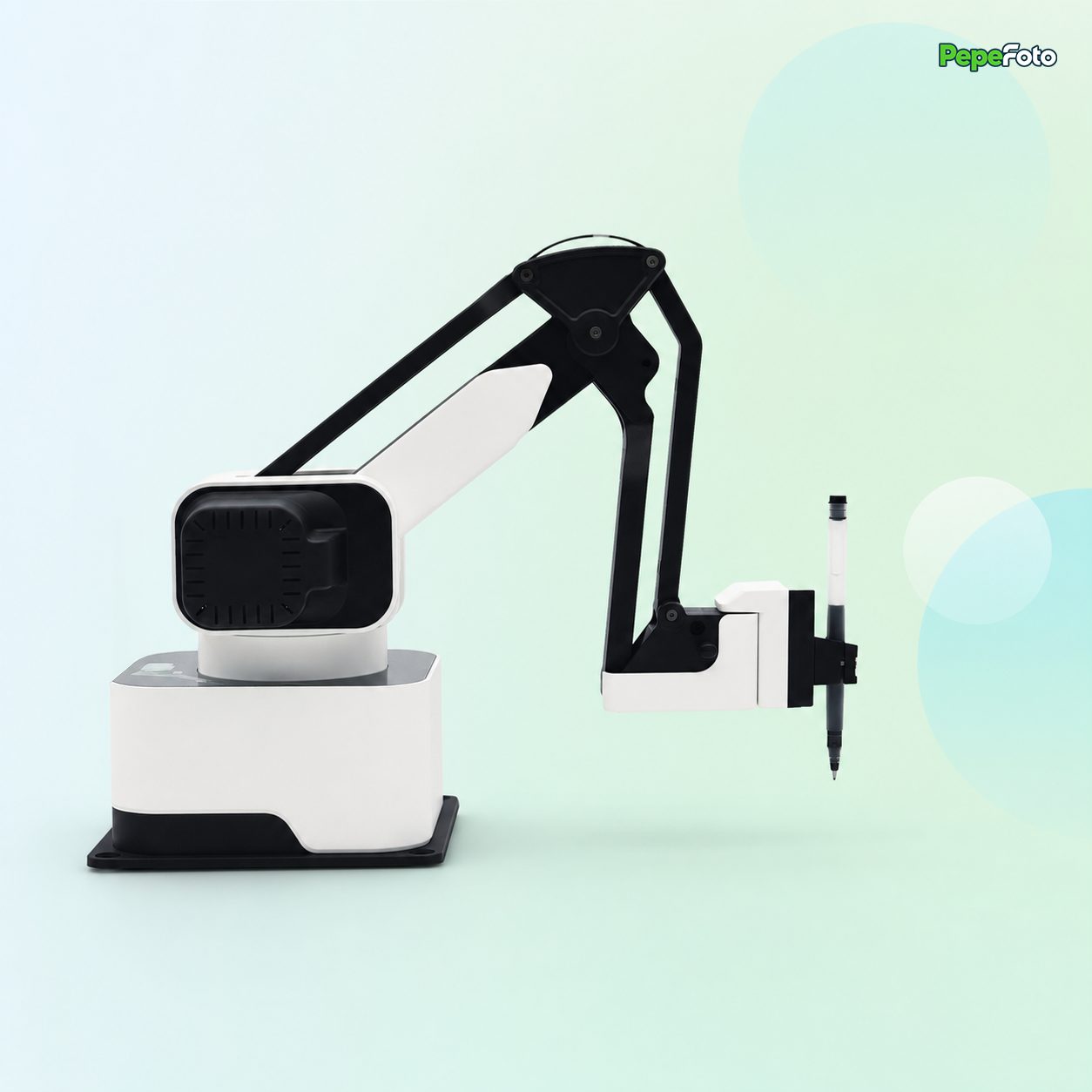

PepeSketch 素描机械臂产品图 / PepeSketch AI sketch arm — 图 00 · PepeSketch 素描机械臂 · 白 × 黑 × 一支笔Fig. 00 · PepeSketch sketch arm · white × black × one pen

重复定位精度约 0.05 mmRepeat accuracy ≈ 0.05 mm

0.05mm

重复定位精度Repeat accuracy

2–3分钟/幅min / pc

复杂风格约 4–6 分钟Detailed styles 4–6 min

A4·A5·A6

三种画幅，横竖可切Three sizes, any orientation

1–4臂arms

多机并行接待Draw in parallel

从照片到作品，五步完成Photo to artwork, five steps

观看落笔的过程，就是最好的现场内容。Watching the arm draw is the show itself.

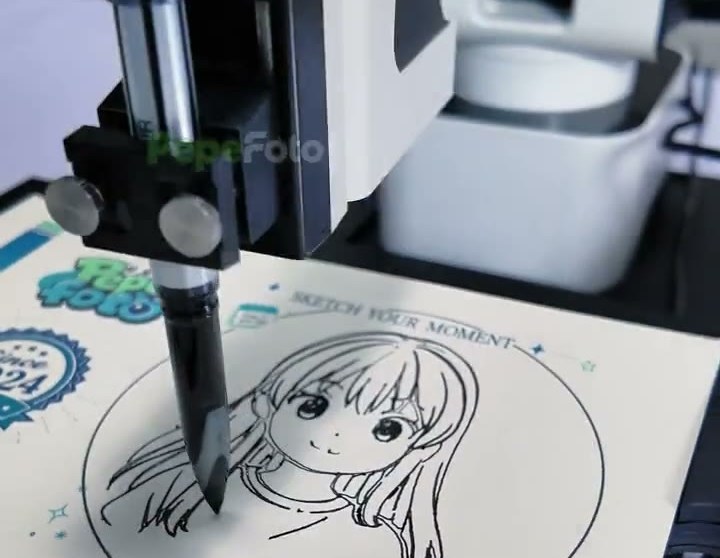

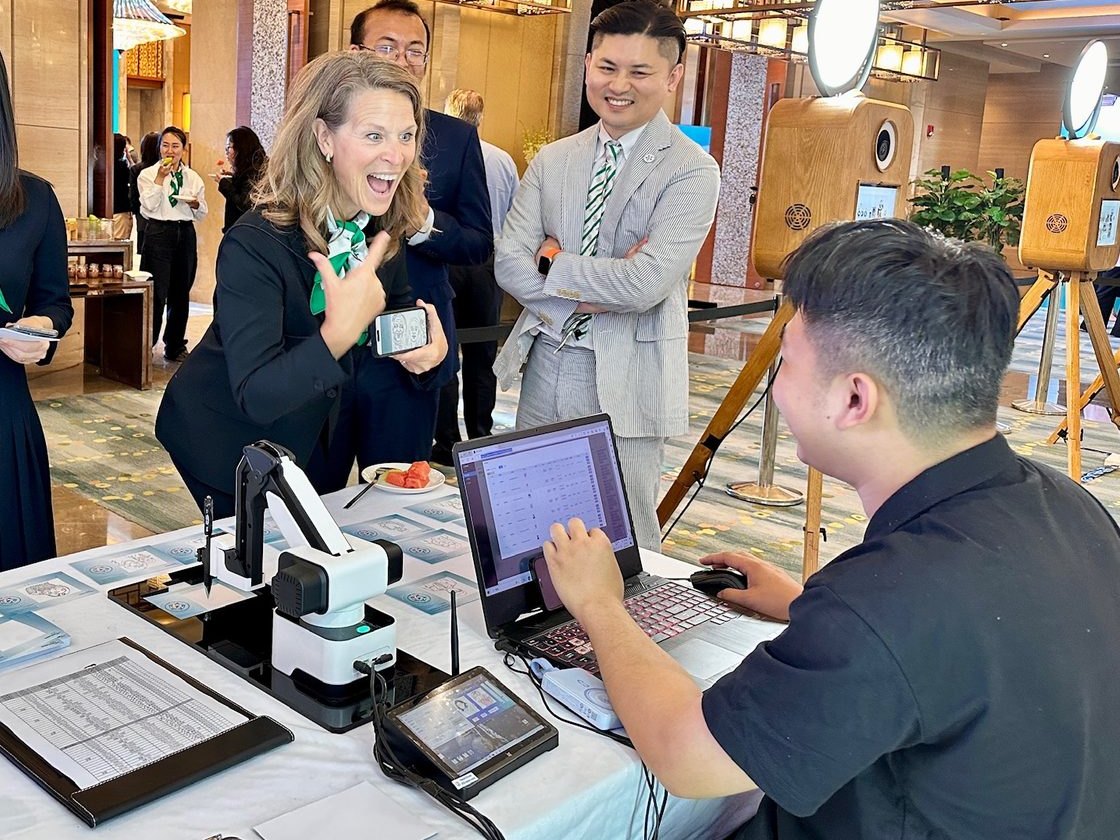

全程可观看的绘制过程 / A watchable drawing process

用户取走实体画像 / Guests take home the portrait

现场实拍，眼见为实Shot on site, seeing is believing

全部来自真实活动现场，点击播放。All from real events — click to play.

完整体验流程The full experience00:30 · 竖屏实拍00:30 · shot on site

多台并行接待Arms in parallel00:20 · 按现场规模配置00:20 · scaled to the venue

专属实体赠品A gift that’s truly yours00:20 · 这张只属于你00:20 · this one’s only yours

小空间完整互动Small-space setup00:20 · 一张桌子就够00:20 · one table is enough

百变画风，支持专属定制Many styles, custom models too

内置多种 AI 成熟模型：经典素描 / 极简线稿 / 艺术速写 / 漫画风……同一张照片，五种表达。Built-in AI models: classic sketch, minimal line, artistic croquis, manga and more — one photo, five looks.

极简线稿 / Minimal line style — 极简线稿Minimal line

品牌高定：可根据您的品牌调性、活动主题，深度定制专属 AI 绘画模型；面框、扫码页、电子图与活动主题均可加入品牌视觉。定制内容、工期与费用单独确认。Brand-custom: we can train a dedicated drawing model around your brand and theme; frames, QR pages, digital cards and event visuals can all carry your branding. Scope, lead time and cost quoted separately.

这些现场，都在用它Already drawing at venues like these

凡是有人停下来的地方，就画得起来。Wherever people stop, it draws.

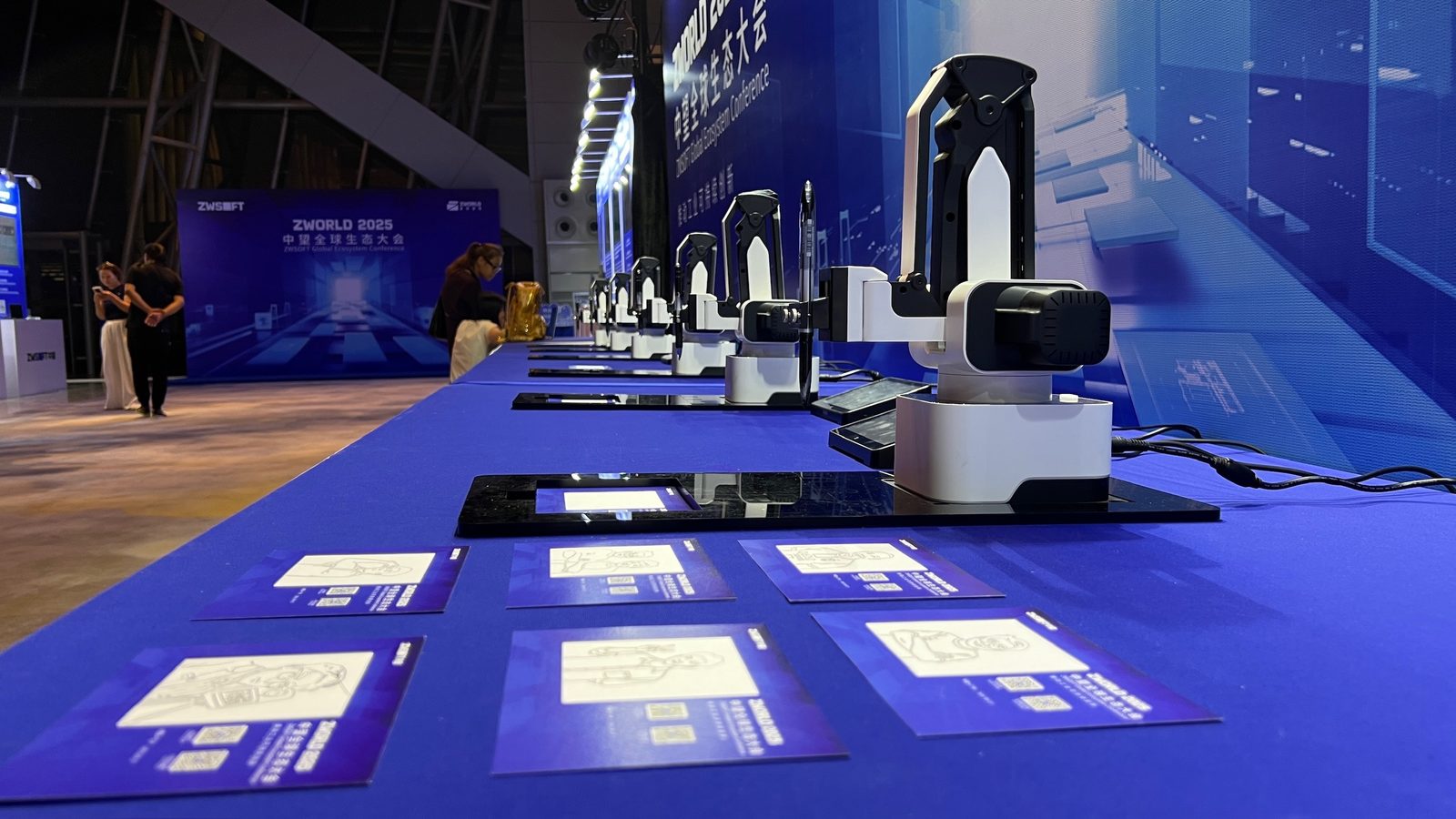

大型活动现场多臂并行接待 / Large event, arms in parallel — 大型活动 · 多臂并行接待Large events · arms in parallel

展会现场 / Expo booth — 展会 · 展位引流Expos · booth traffic

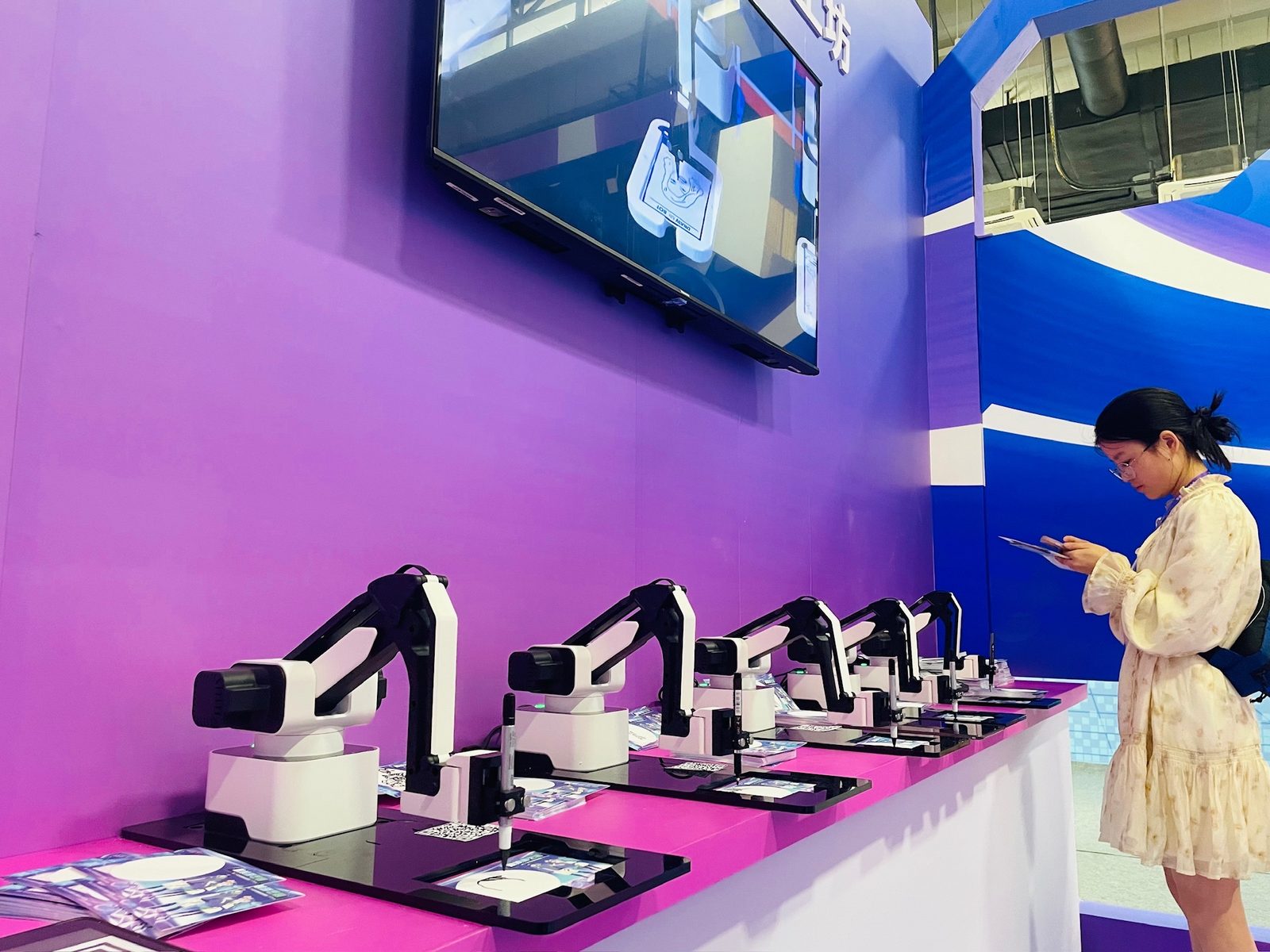

漫展现场 / Anime convention — 漫展 · 二次元浓度拉满Anime cons · a fan favorite

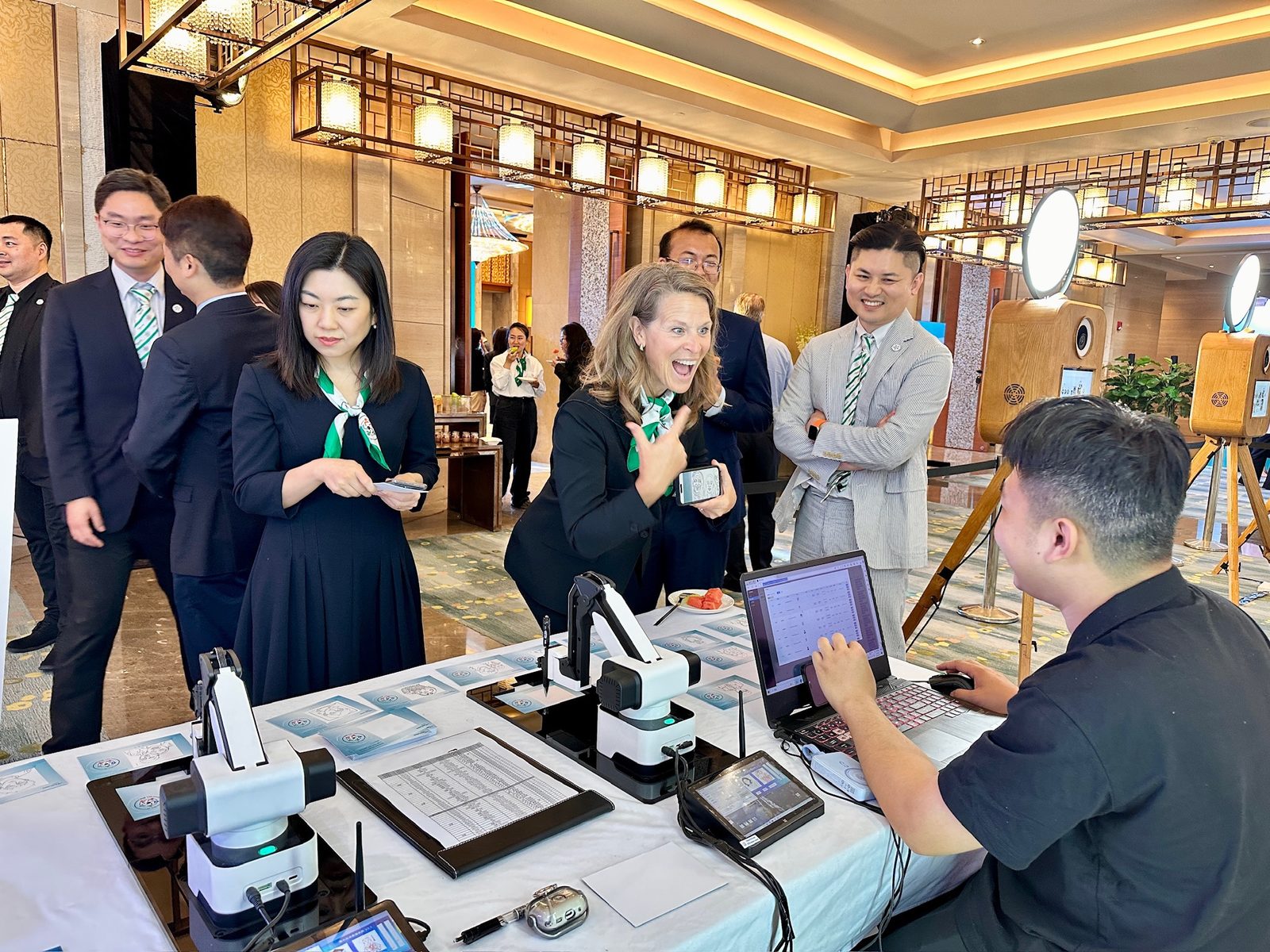

企业活动现场 / Corporate event — 企业活动 · 年会团建Corporate · galas & team days

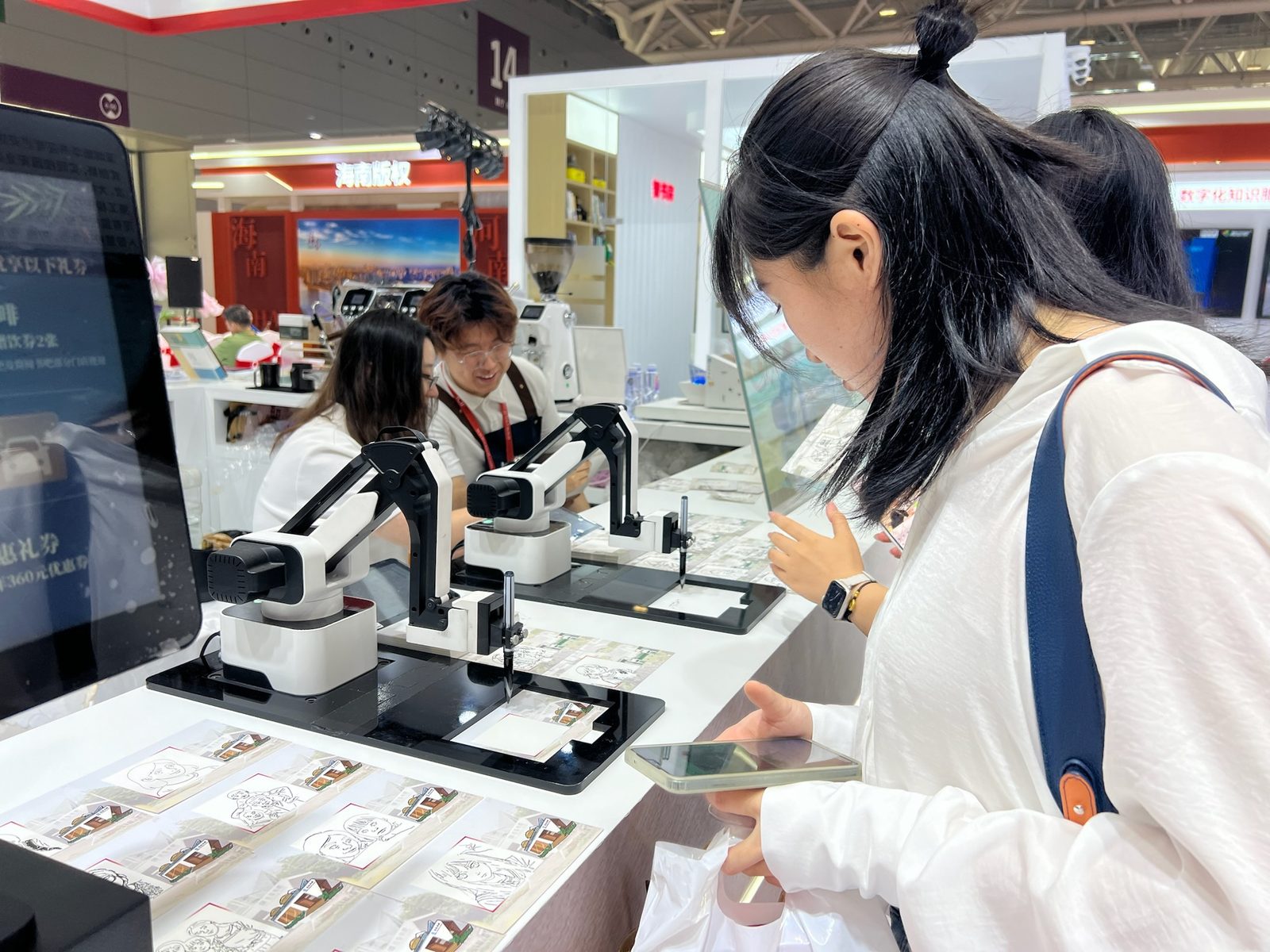

门店常驻点位 / In-store residency — 门店 · 长期点位Stores · long-term spots

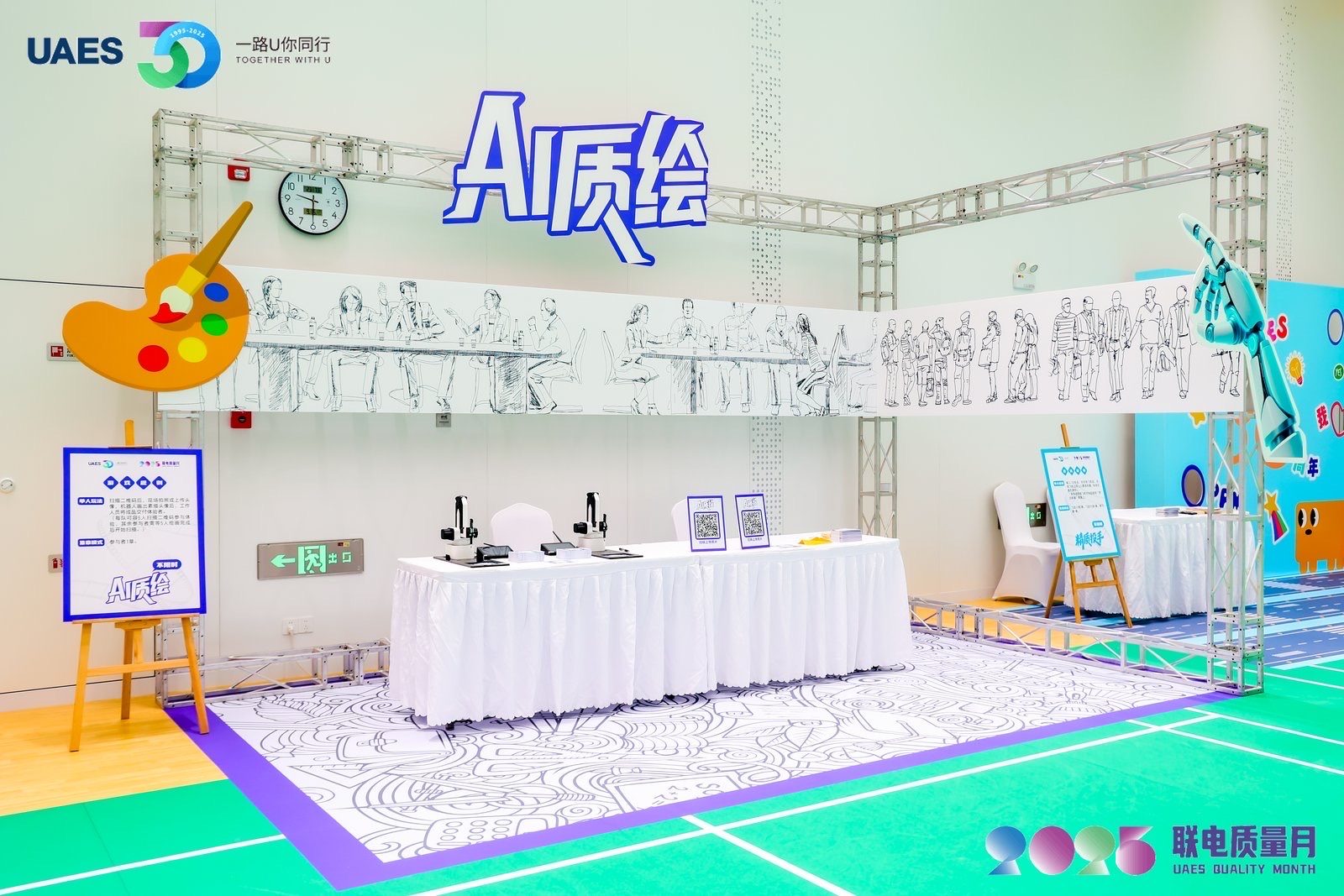

院校活动现场 / Campus event — 院校活动 · 科技体验Campus · tech showcases

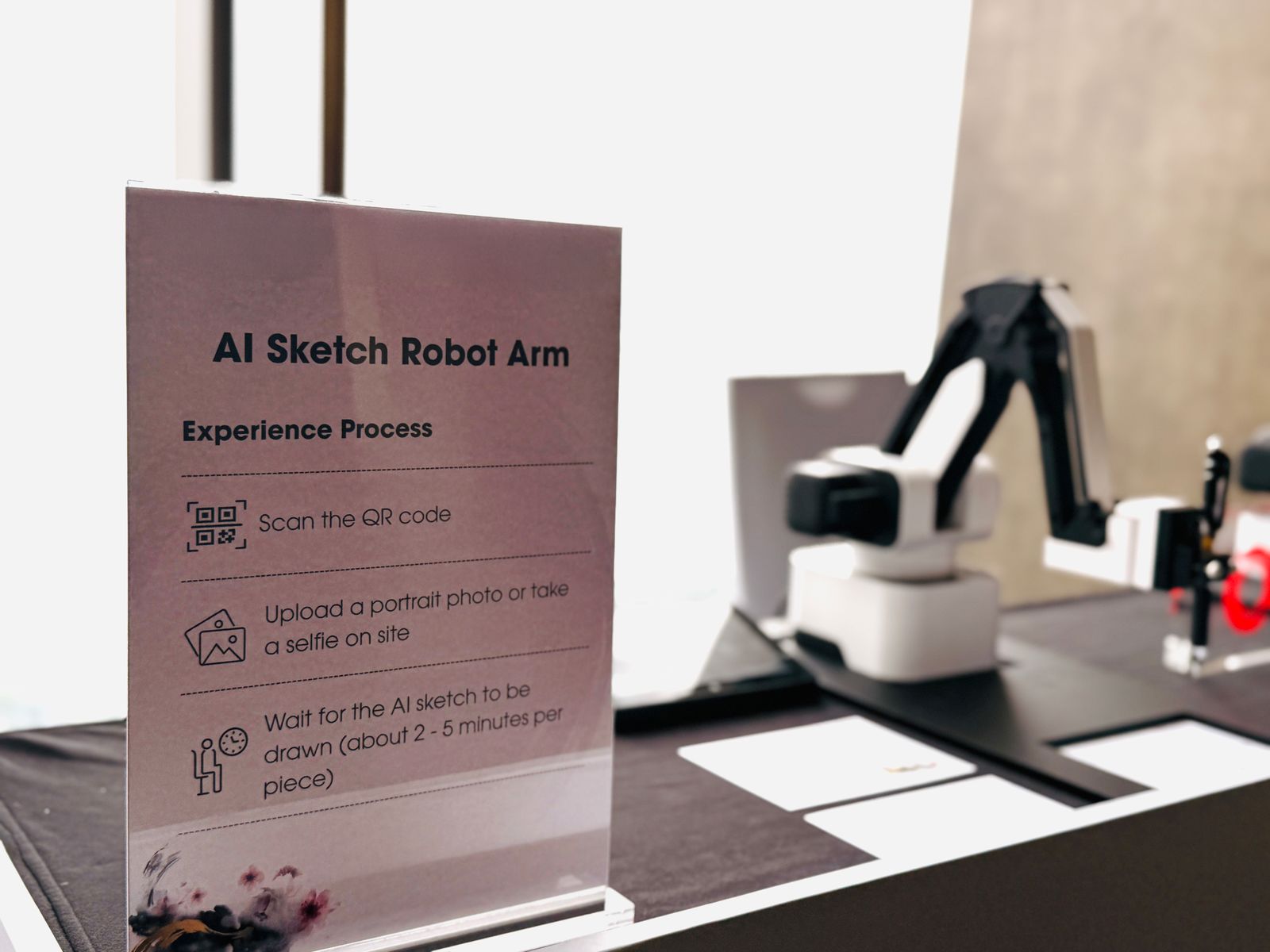

海外晚宴现场，英文体验指引牌旁的素描机械臂 / Overseas gala, sketch arm beside an English guide sign — 海外晚宴 · 英文指引即可开画Overseas galas · one English sign, no staff script

婚礼现场Weddings提升客单价raise the package value

景区 / 游乐场 / 博物馆Attractions & museums长线点位运营long-run locations

商场快闪 / 展会 / 品牌活动Pop-ups, expos & brands现场引流a crowd magnet

代理商运营 / 手办店Agencies & hobby stores轻资产起步asset-light business

软件系统，把现场流程一条跑通One software system for the whole workflow

一块 10.1 寸触屏全搞定。软件随整机交付，多台机械臂接进同一个后台、共用一条队列。All on one 10.1″ touchscreen. The software ships with every kit; all arms join one console and share one queue.

运营端 · 项目与设备Operations · projects & devices

仪表盘、项目管理、设备管理与订单队列集中查看。Dashboard, projects, devices and order queues in one console.

制作端 · 线稿与画面Production · line art & layout

画幅、纸张、画笔高度和绘画位置可以按设备独立设置。Set the paper, drawing area, pen height and drawing position for each robot.

交付端 · 进度与记录Delivery · progress & records

扫码上传、进度通知、任务状态和完成记录串成闭环。QR upload, progress updates, job states and completion records form one loop.

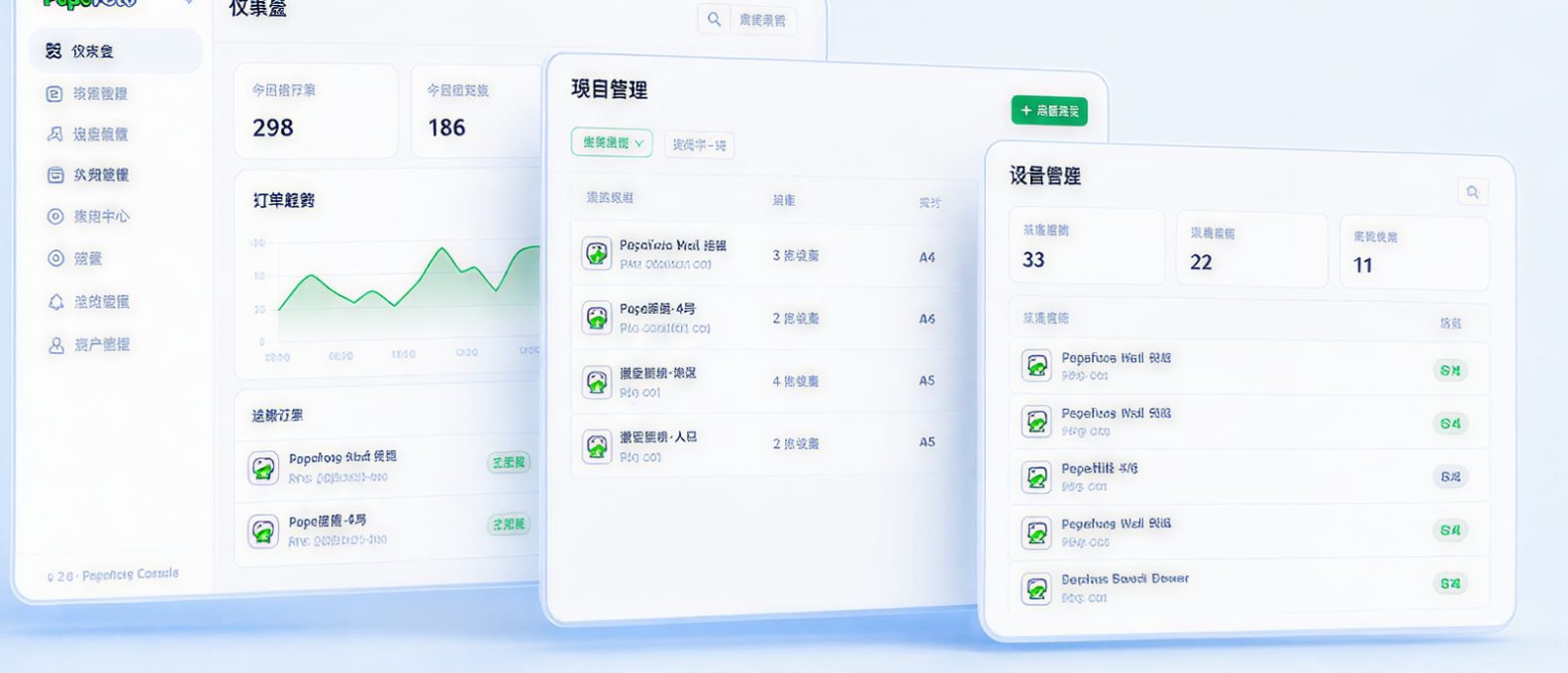

PepeSketch 管理后台界面 / PepeSketch management console — 管理后台：仪表盘 · 项目管理 · 设备管理 · 订单与队列The console: dashboard · projects · devices · orders & queue

软件功能 · 自定义 UI 与 API 打印：手机 H5 拍照、拍照机经标准 API 送图、后台可视化改界面 · 00:56（界面数据为演示）Software · custom UI & API printing: phone H5 capture, booth photos sent through the standard API, visual page editing · 00:56 (demo data)

一站式装备，套餐与报价All-in-one kits & pricing

一切从简，为了让你把时间留给收银。到手即用的整套设备与软件授权。Everything simplified so you can focus on the till — a complete, ready-to-run kit with software license.

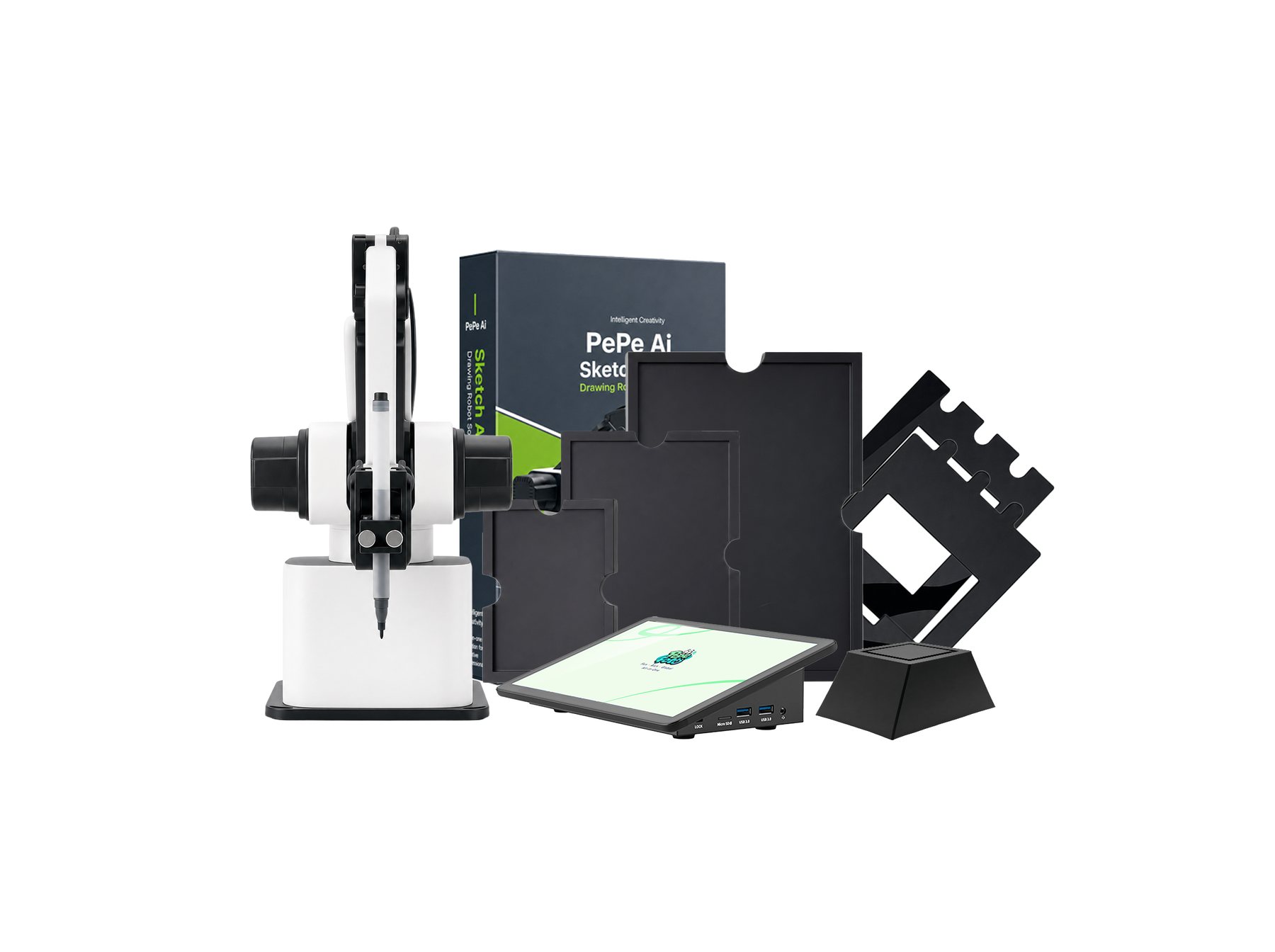

套餐 APlan A

单臂基础套餐Single-Arm Starter

¥19,600≈ $2,760

适合：先跑通流程 · 小型活动 · 门店试运营For: proving the workflow · small events · store trials

PepeSketch 素描机械臂PepeSketch sketch arm× 1
触控控制主机Touch console× 1
素描平台使用服务（账号）Platform service (account)× 1
机械臂底座固定件Arm base mount× 1
A4/A5/A6 多尺寸画板套件A4/A5/A6 board set× 1
梯形增高垫Trapezoid riser× 1
黑色收纳包Carry bag× 1
初始生成额度Starter image credits1000 张1,000

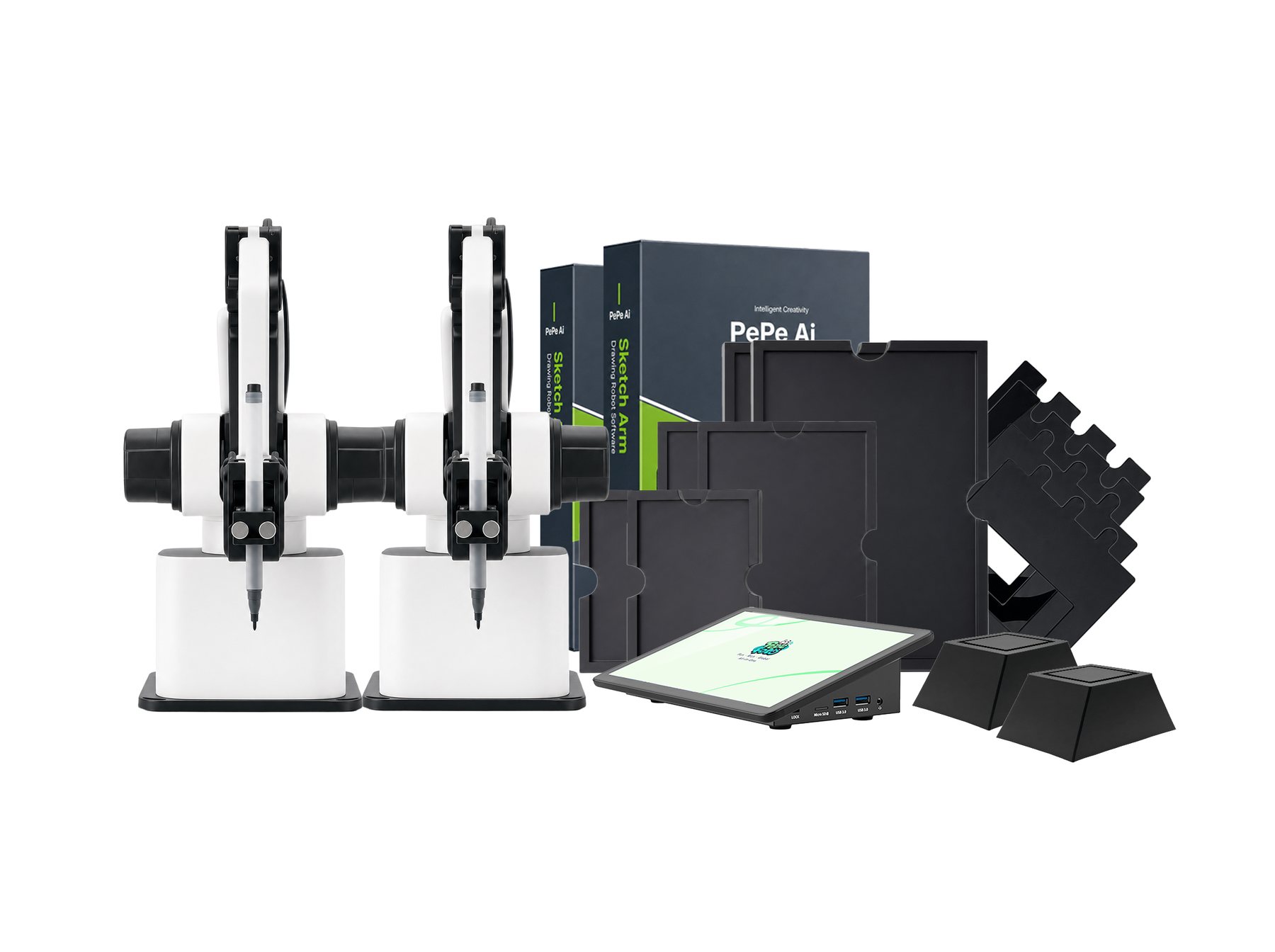

高峰之选PEAK PICK 双臂联控套餐配置图 / Dual-Arm Duo kit

套餐 BPlan B

双臂联控套餐Dual-Arm Duo

¥30,800≈ $4,340

适合：高峰人流 · 展会快闪 · 婚礼与活动公司长期运营For: peak crowds · expos & pop-ups · wedding and event companies

PepeSketch 素描机械臂PepeSketch sketch arm× 2
触控控制主机Touch console× 1
素描平台使用服务（账号）Platform service (account)× 1
机械臂底座固定件Arm base mount× 2
A4/A5/A6 多尺寸画板套件A4/A5/A6 board set× 2
梯形增高垫Trapezoid riser× 2
黑色收纳包Carry bag× 2
初始生成额度Starter image credits1000 张1,000
多臂扩容授权Multi-arm expansion licence× 1

三臂并行套餐Three-Arm Parallel大型展会 · 多点位同时接待 · 含 2 套扩容授权major expos · several guests at once · 2 expansion licences

¥42,000≈ $5,920

四臂矩阵套餐Four-Arm Matrix旗舰现场 · 产能拉满 · 含 3 套扩容授权flagship sites · maximum output · 3 expansion licences

¥53,300≈ $7,510

加一台臂ADD AN ARM

+ ¥11,200+ $1,580左右approx.

多出来的是：机械臂、底座固定件、画板套件、增高垫、收纳包各一套，加一套多臂扩容授权。控制主机、后台账号和 1000 张额度不重复买。Each extra arm brings its own base mount, board set, riser and carry bag, plus one expansion licence. The console, the console account and the 1,000 credits are shared, not bought again.

怎么选臂数HOW MANY ARMS

日需求 ÷ 150Daily demand ÷ 150≈ 臂数≈ arms

单臂一天按完整流程约 100–180 单，取中间值 150 粗估。拿不准就先用单臂在一场可控的活动里跑通，再按真实人流、画纸尺寸和人手决定要不要加臂。One arm handles about 100–180 orders a day with the full guest flow, so 150 is a fair rule of thumb. Not sure? Run one controlled event with a single arm first, then add arms based on real traffic, paper size and staffing.

报价备注：以上人民币价格为含 13% 增值税的优惠总价（2026-10-13 报价单）；每套含 1000 张图片生成额度，用完后按 ¥1 / 张在管理后台充值；运费、上门交付差旅、额外售后、品牌定制和现场搭建物料另行报价。美元价格按参考汇率折算，仅供参考；正式价格以报价单及合同为准。Pricing notes: CNY prices are discounted totals including 13% VAT (quotation dated 13 Oct 2026). Every kit includes 1,000 image credits; after that, top up in the console at CNY 1 per image. Shipping, on-site delivery travel, extra support, brand customization and booth build-out are quoted separately. USD figures are indicative conversions only; final pricing per the official quotation and contract.

代理合作PARTNER PROGRAM

做婚礼、展会、活动的，可以拿它做生意。Run weddings, expos or events? Sell it with us.

四种合作方式，从介绍一单到区域经销，按你的投入选。Four ways in — from a single referral to regional distribution.

01推荐伙伴Referral partner6%

介绍客户成交，拿成交奖励reward on every referred sale

02认证代理Certified agent样机 9 折Demo unit 10% off

完成培训后认证after completing training

03区域经销Regional distributor85 折供货15% off supply

首批 3 台起first order of 3 units

04商机保护Lead protection90 天90 days

报备商机受保护，全渠道统一零售价registered leads protected; one retail price everywhere

样机激励：Demo-unit bonus: 拿样机后 90 天内售出 2 台，返 ¥1,000 市场支持。具体条款以签约政策为准。sell 2 units within 90 days of taking a demo unit and get CNY 1,000 in marketing support. Terms per the signed partner agreement. 聊合作 →Talk to us →

参数与现场条件Specs & site needs

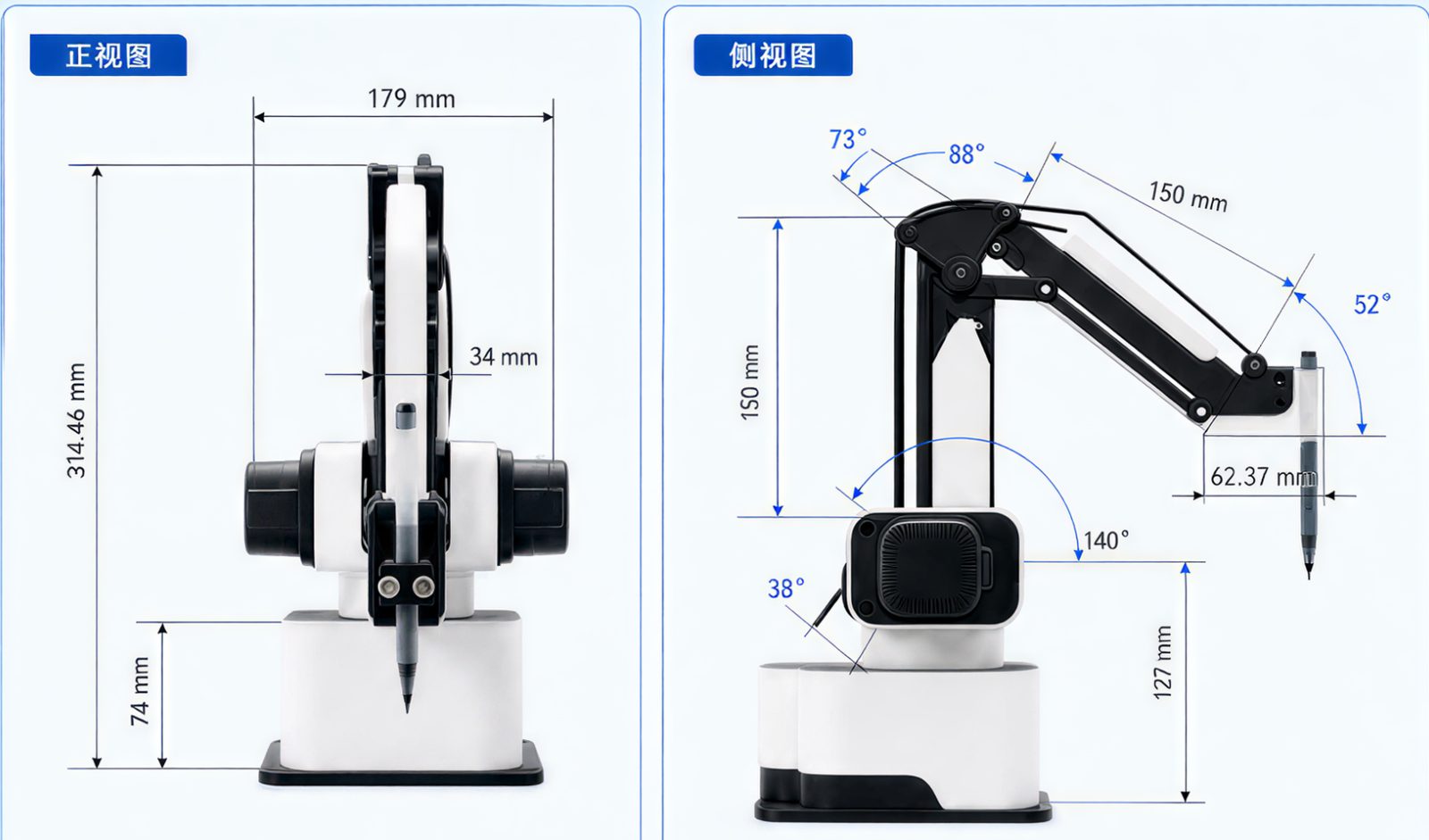

正视图与侧视图尺寸标注 / Front and side dimension drawings — 图 07-1 · 正视 / 侧视尺寸标注 · 单位 mmFig. 07-1 · Front & side dimensions · mm

设备尺寸Dimensions	约 175 × 128 × 315 mm≈ 175 × 128 × 315 mm
设备重量Weight	约 2,000 g（机械臂硬件主体）≈ 2,000 g (arm hardware)
机械结构Arm structure	4 轴关节，末端负载 500 g4-axis articulated, 500 g payload
供电连接Power & I/O	12V 供电，USB Type-C 连接12V power, USB Type-C connection
定位精度Precision	重复定位精度约 0.05 mmRepeat positioning ≈ 0.05 mm
控制主机Console	10.1 英寸 IPS 触屏 1280×800，N5100（8+128G），Windows 1110.1″ IPS touchscreen 1280×800, N5100 (8+128G), Windows 11
绘画速度Drawing speed	按作品风格约 2–3 分钟/幅，或 4–6 分钟/幅≈ 2–3 min per piece, or 4–6 min for detailed styles
单日产能Daily capacity	单机 8 小时理论约 160–240 人；建议按完整体验流程预估 100–180 单/天160–240 pieces theoretical per arm per 8h; plan on 100–180 orders/day with the full experience flow
现场条件Site needs	平整桌面、220V 电源、稳定网络，预留 ≥ 2m × 2m 体验与排队区；基础运营 1 人Flat stable table, 220V power, stable internet, ≥ 2m × 2m for the experience and queue; one staff for base operation

所有尺寸为人工测量，可能存在 ± 0.5mm 误差，请以实物为准。All dimensions are hand-measured (± 0.5 mm); the actual product may vary.

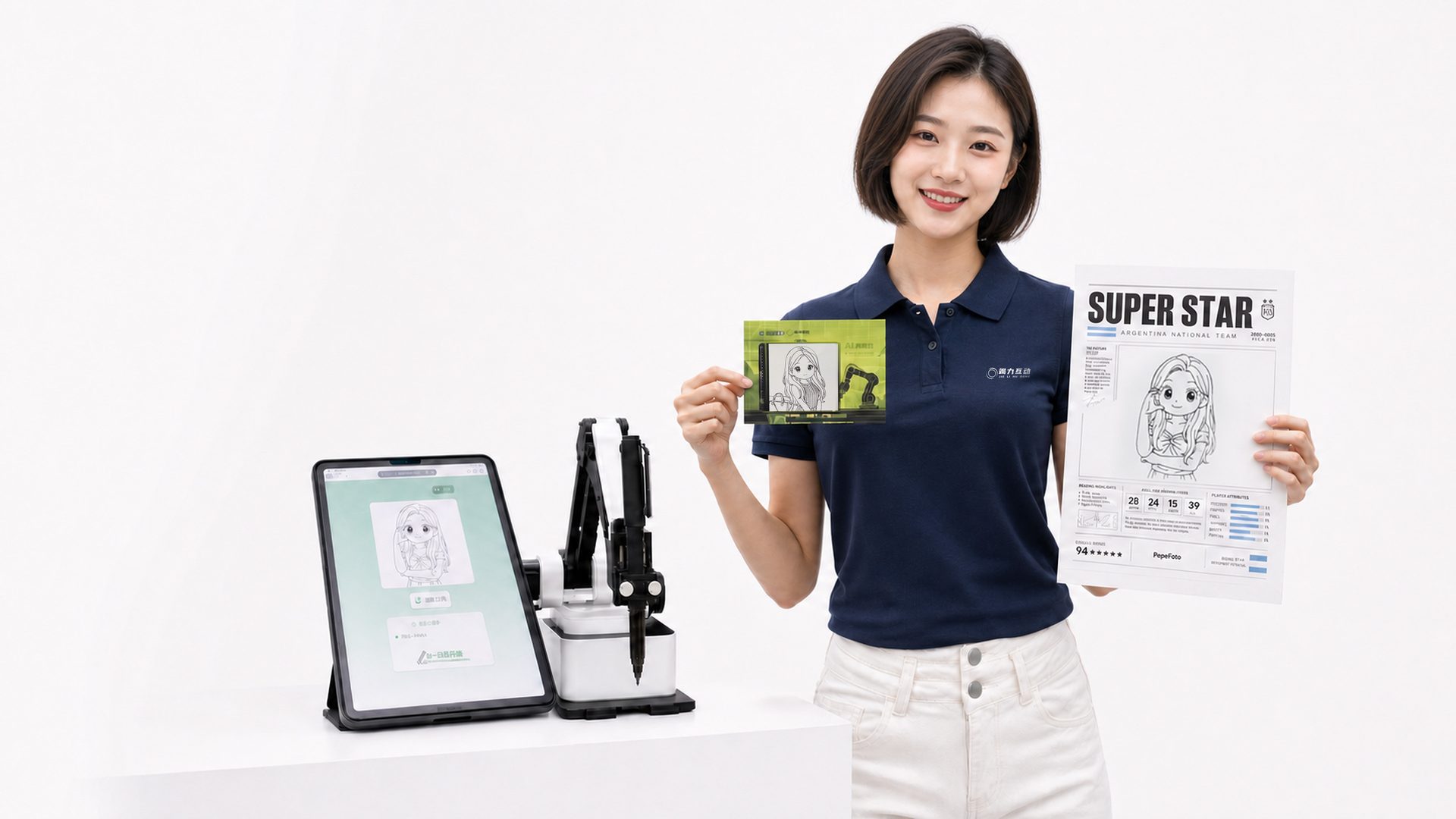

多画幅，灵活交付Multiple sizes, flexible output

A4 / A5 / A6，横竖版自由切换。A4 / A5 / A6, portrait or landscape.

297 × 210 mmA4

210 × 148 mmA5

148 × 105 mmA6

尺寸即策略Size is strategy

A4 大画幅 · 仪式感：颁奖、贵宾和展厅陈列，画面更完整，值得装裱the occasion size: awards, VIPs and showroom display — more detail, worth framing
A5 效率与质感平衡：大多数活动的默认选择the balanced default for most events
A6 高峰快速出画：人多的时候人人有份、不排长队fast for peak hours — everyone gets one, the queue stays short

三档画幅同一场活动里可以随时切换。Switch between the three sizes at any point during an event.

纸张：Paper: A5/A6 用 300g 哑光白卡，A4 用 120g+ 铜版纸300 gsm matte cardstock (A5/A6); 120 gsm+ coated (A4)
设计：Design: 品牌元素放边框，绘制区留白；A4/A5/A6 设计规范随资料提供branding on the frame, drawing area clean; A4/A5/A6 artwork specs come with the kit
上机前：Before launch: 小批量试印 + 真机试画trial print + one real drawing test

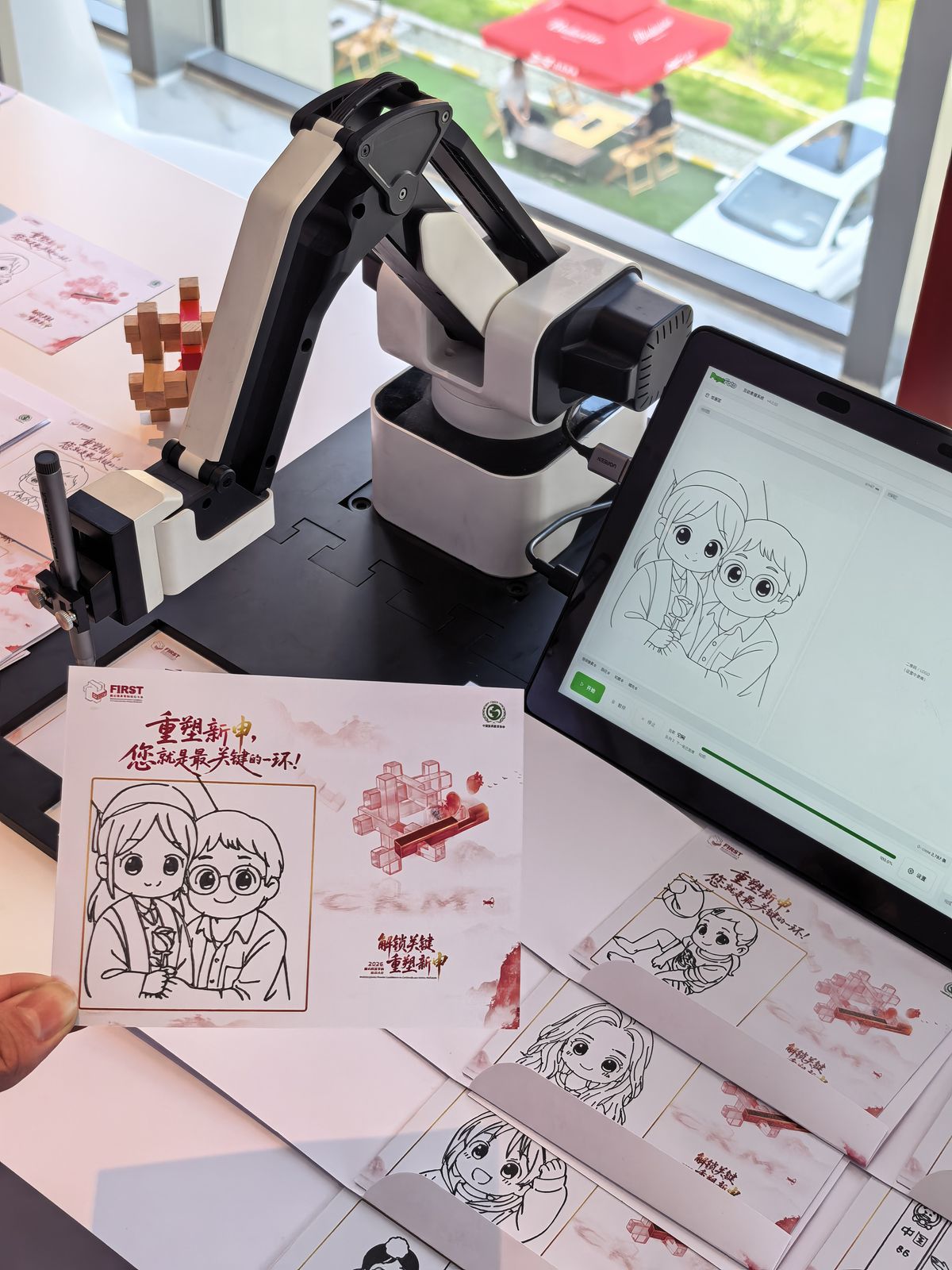

实拍：品牌卡纸上了活动现场On site: branded cards at a live event卡纸预印活动主视觉，机械臂画在留白区，画完就是一份带活动名字的纪念品。The card carries the event artwork; the arm draws in the blank area, so every portrait leaves as a branded keepsake.

一套卡纸，每人不同的画One card design, a different portrait each

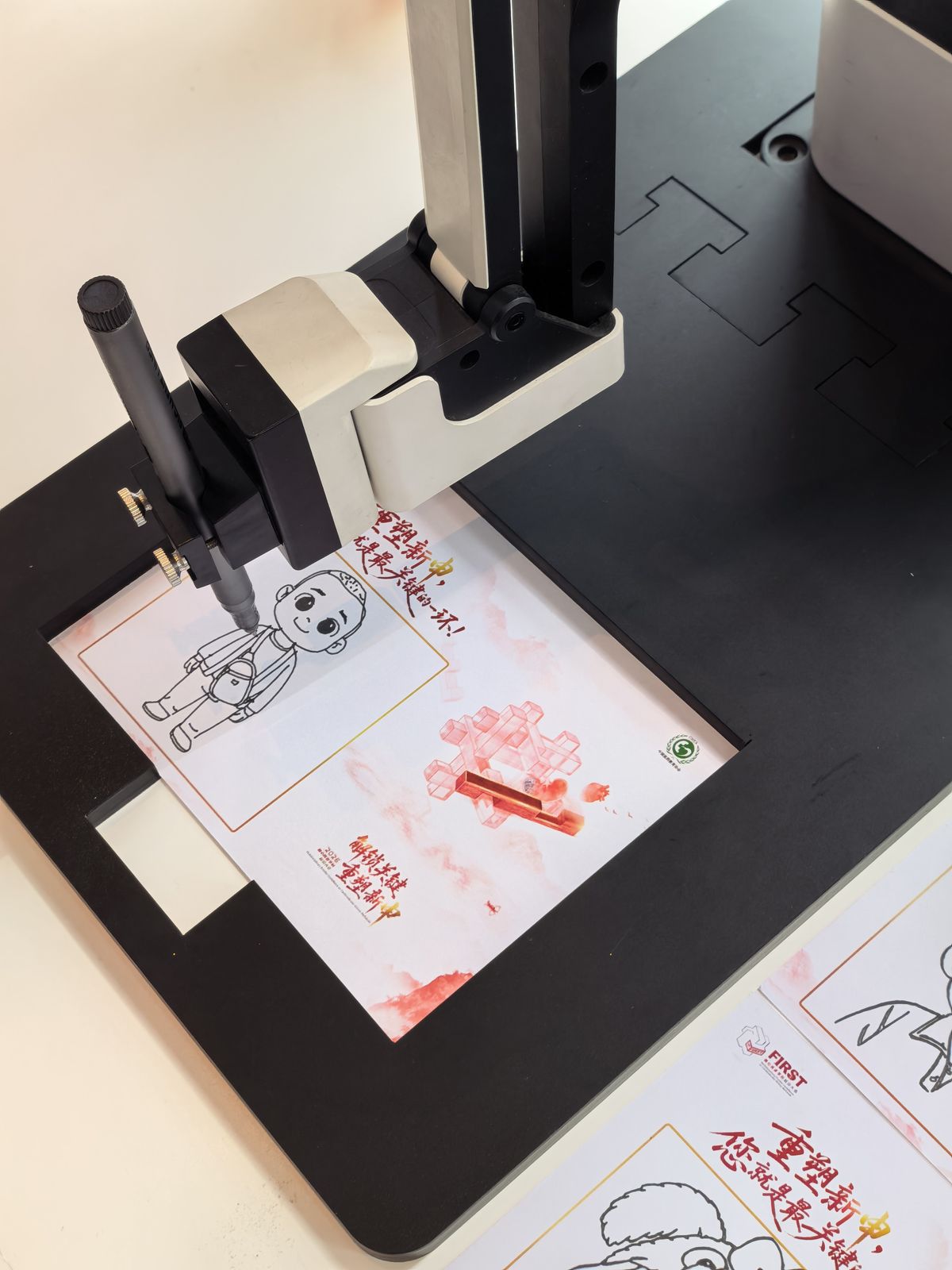

机械臂只画留白区The arm draws only in the blank area

屏上线稿，手里成品Line art on screen, finished card in hand

从下单到落地Order to launch

每一步都有清单与视频，首单也能独立跑通。A checklist and video for every step.

发货前信息收集Pre-ship info form
一张表收齐现场信息One form for everything
装箱与发货Packing & dispatch
清单核对，照片留档Checked and photographed
到货验收Arrival check
对照装箱清单逐项核对Check every item against the list
安装与校准Setup & calibration
图文手册 + 校准 SOP + 右侧两段视频Illustrated manual + calibration SOP + the two videos
培训与交付确认Training sign-off
独立跑通一次完整流程Run one full flow yourself
运营与售后Operations & support
检查表 + 报修模板Checklists + repair template

快速上手 1 · 设备组装：底座、画板、增高垫到接线 · 03:45Quick start 1 · Assembly: base, boards, riser and cabling · 03:45

快速上手 2 · 后台设置：纸张、绘画位置到第一张试画 · 06:30Quick start 2 · Console setup: paper, drawing position and the first test drawing · 06:30

一年质保 · 7×24 小时技术支持 · 全球发货（运费另计）。设备问题先远程排查，质保与返修责任在报价单及合同中逐项写明。1-year warranty · 24/7 technical support · worldwide shipping (freight extra). Remote diagnosis first; warranty and repair terms are itemized in the quotation and contract.

你关心的问题Questions we hear the most

基础运营 1 人即可完成引导、放纸、取画和队列管理；高峰或收费现场建议 2 人，一人引导收款，一人管设备和耗材。One person can guide guests, load paper, hand over portraits and manage the queue. For peak or paid activations, use two: one at the front, one on the machines.

三种入口可以同时开：手机扫码上传（观众不用守着排队）、控制屏现场拍照、接入拍照机照片流程，照片都进同一条队列。Three entrances can run at once: QR upload from a phone (guests don't have to stand in line), capture at the console, or photos sent from a photo booth — all into one queue.

素描纸、绘画笔/笔芯和图片生成额度。每套含 1000 张额度，用完按 ¥1 / 张在后台充值。Sketch paper, pens or refills, and image credits. Every kit includes 1,000 credits; after that it's CNY 1 per image, topped up in the console.

适合景区、手办店、游乐场、展厅、院校和文创空间等长期点位，建议结合现场人流和收费方式评估。Yes — attractions, hobby stores, amusement parks, showrooms, campuses and creative retail. Size it against real traffic and your pricing model.

常见方式有按张收费、门票或套餐增值、活动日租、品牌定制礼品和长期点位运营。实际收益取决于点位、人流、定价与运营方式。Charge per portrait, bundle it into tickets or packages, rent it out per event day, sell it as a branded gift, or run a long-term spot. Actual returns depend on location, traffic, pricing and operation.
